Reliable measurement of the surrounding space geometry, speed, and distances, used for navigation and flawless autonomous operation. Obstacle avoidance, accurate perception of surroundings, and robustness you can trust.

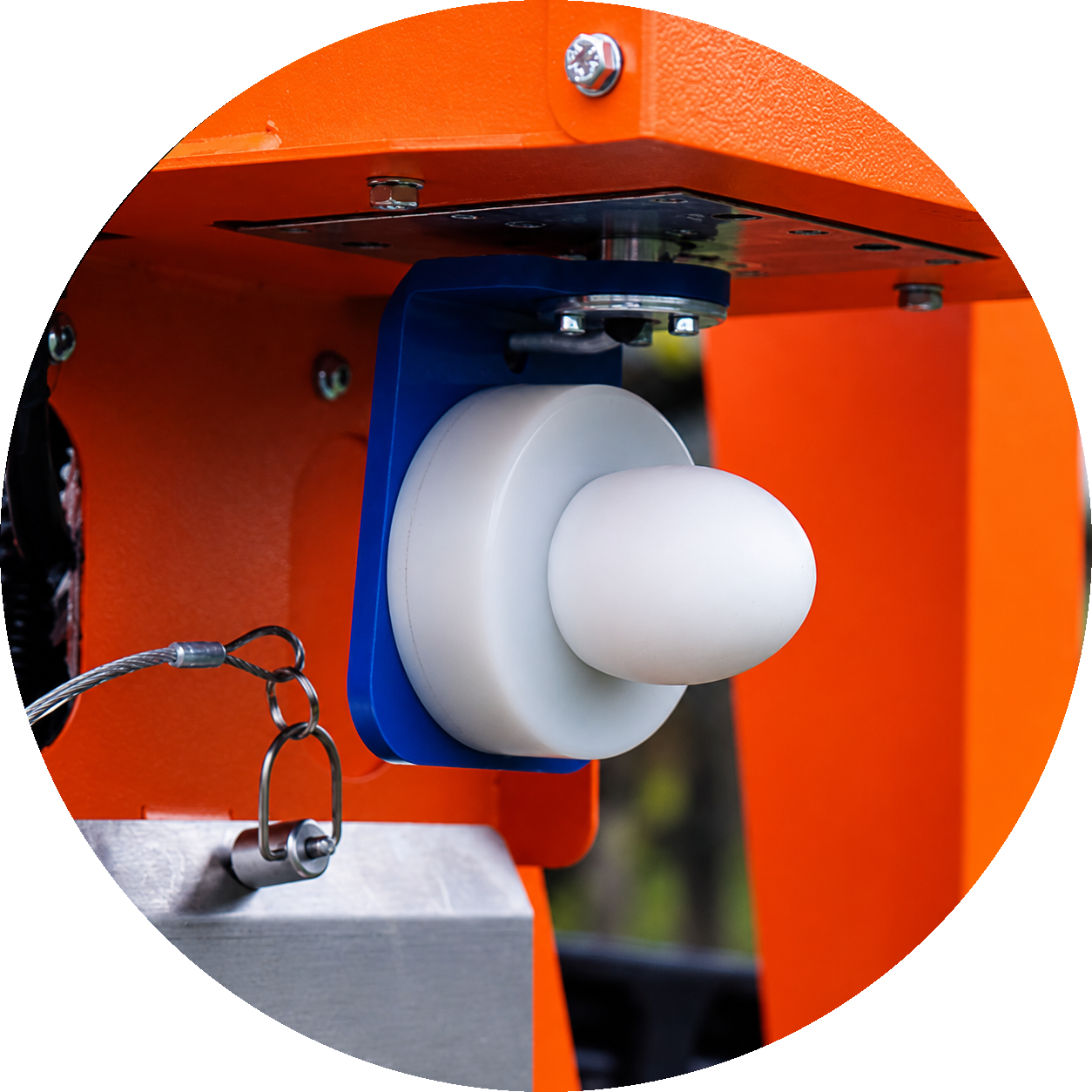

RADAR is an acronym for Radio Detection And Ranging. This technology uses radio waves to pinpoint the location and calculate the distance of objects, including those that may not be visible to the naked eye. RADAR can also determine the velocity of a moving object.
The radar emits radio waves that bounce off objects in the environment and return to the sensor. It measures the time required for those waves to return to determine the distance to each object. It can also detect object speed by measuring the frequency shift of the returning radio waves, known as the Doppler effect.
Once captured, the data is processed by an onboard computational unit to create a 2D representation of the surrounding terrain. This mapped environment then informs the vehicle’s autonomous driving system and guides its navigational decisions.
Especially in challenging environments and adverse weather conditions.
Excellent obstacle detection for reliable navigation through complex terrain, avoiding obstacles and supporting autonomous operation in challenging environments.
Reliable distance measurement, object detection and positioning in rain, fog, snow and other low-visibility conditions.
With measuring precision of ±30 mm and a measuring range from 0.5 m to 6 m, the radar supports a high level of detection accuracy and precise navigation.
The sensor is durable and reliable in rugged environments and is less sensitive to dust, dirt and vibration than optical sensors.
A low false-positive rate reduces the likelihood of mistakes, unnecessary manoeuvres and avoidable interventions.
The Challenge
To provide positioning with an accuracy of up to 10 mm for precise and reliable navigation of autonomous unmanned ground vehicles (UGVs).

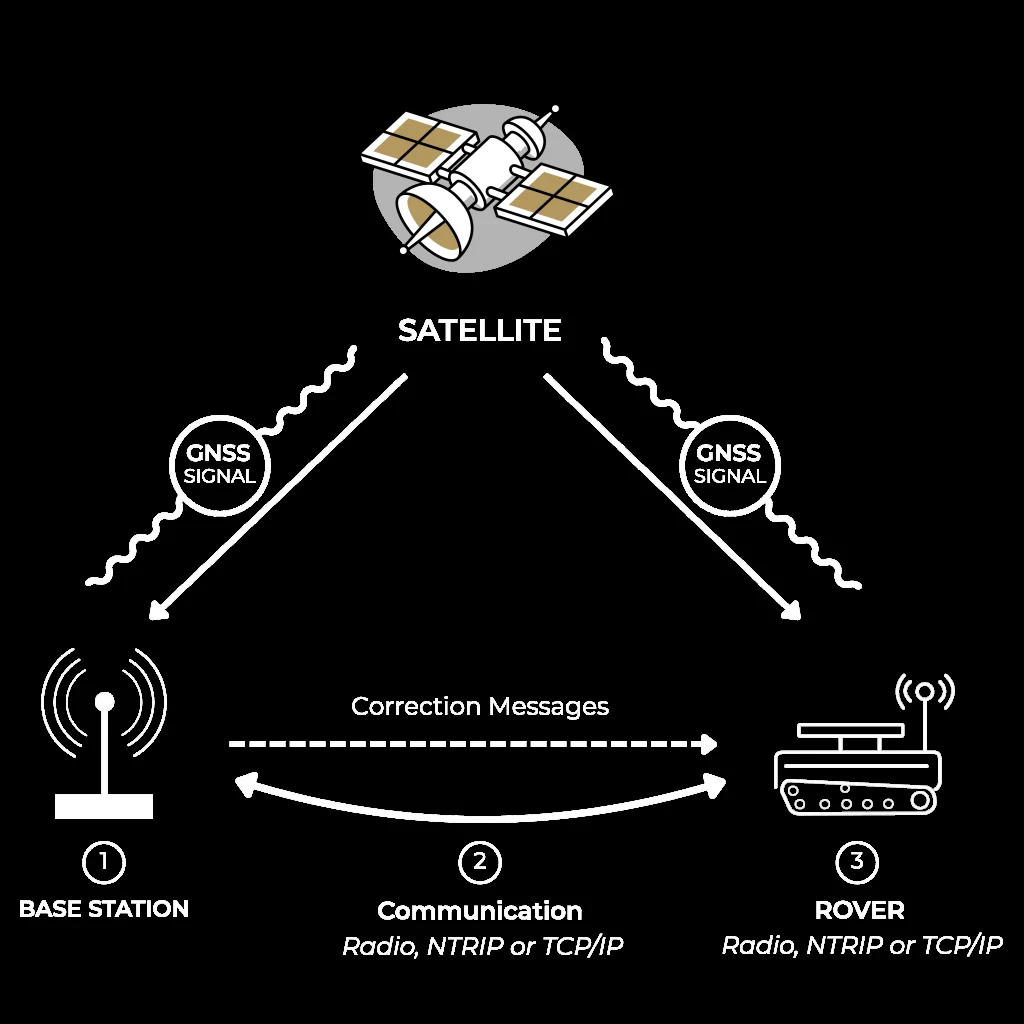

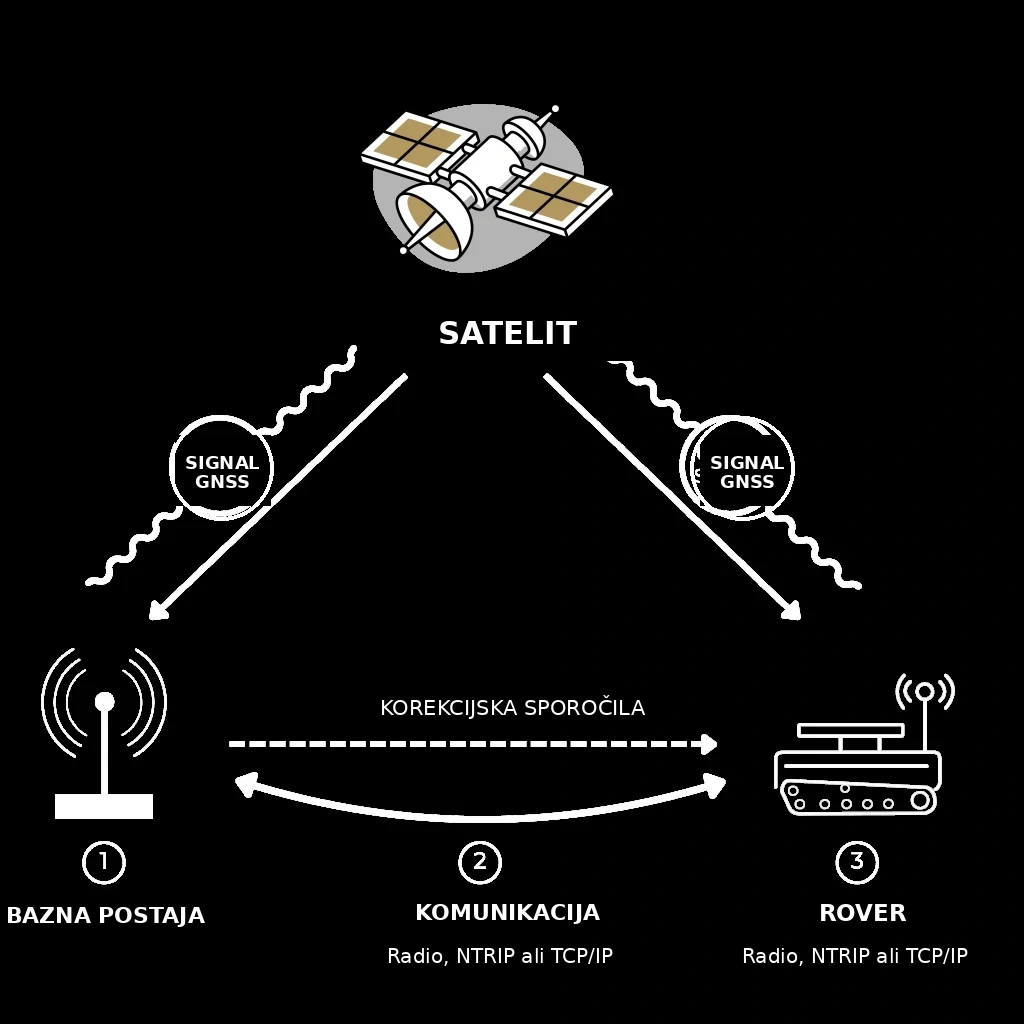

Satellites provide signals that transmit positioning and timing data to GNSS receivers.
The base station sends correction data to the rover.
The rover receives the GNSS signal and correction data from the base station.

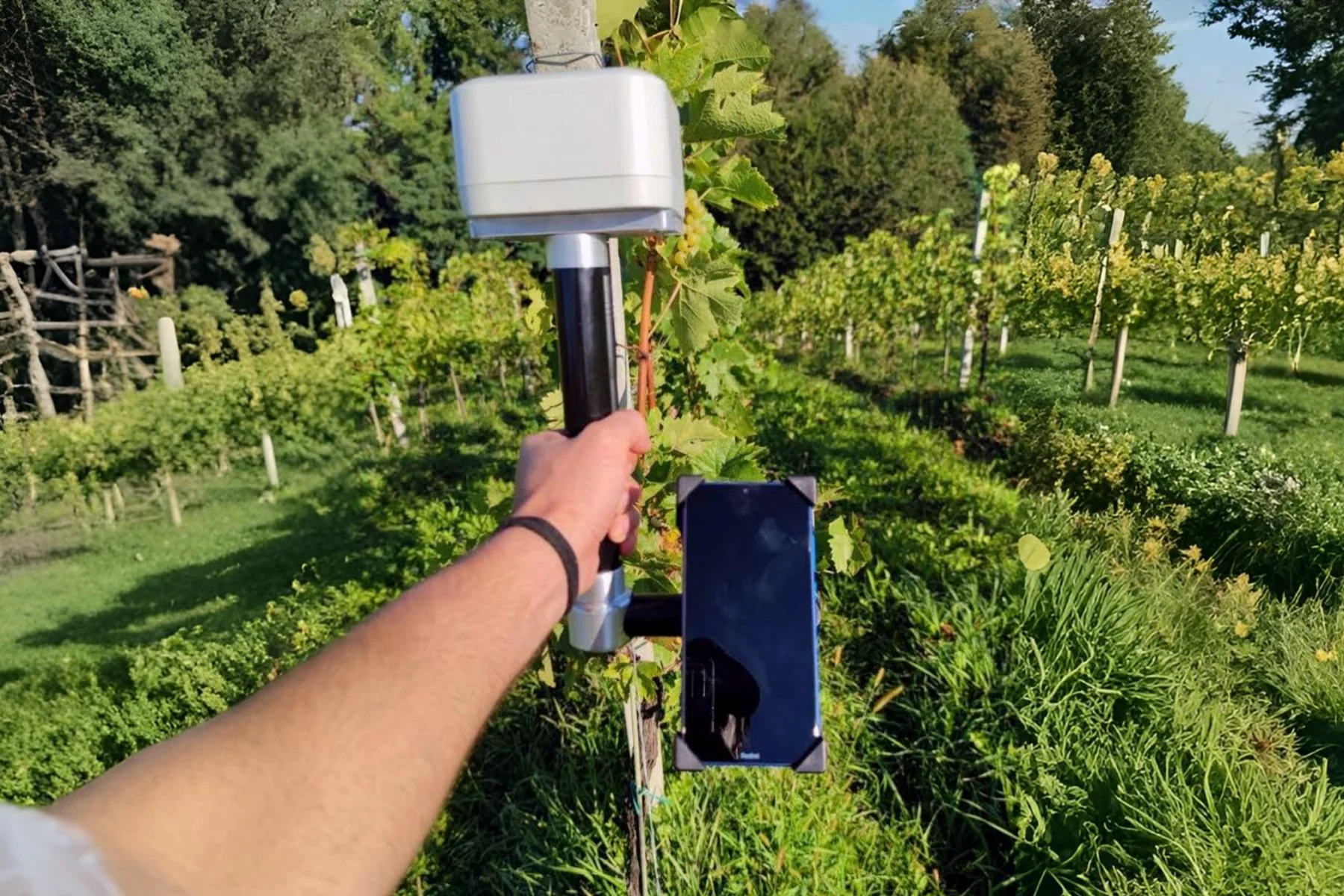

A handheld receiver for map-making or pinpointing position.
RTK, or Real-Time Kinematic positioning, is a sophisticated technology that significantly enhances the accuracy of GNSS (Global Navigation Satellite System) positioning. While conventional GNSS receivers, such as those relying on GPS, provide locational accuracy within a range of 2–4 meters, RTK technology narrows this down to remarkable centimeter-level precision.

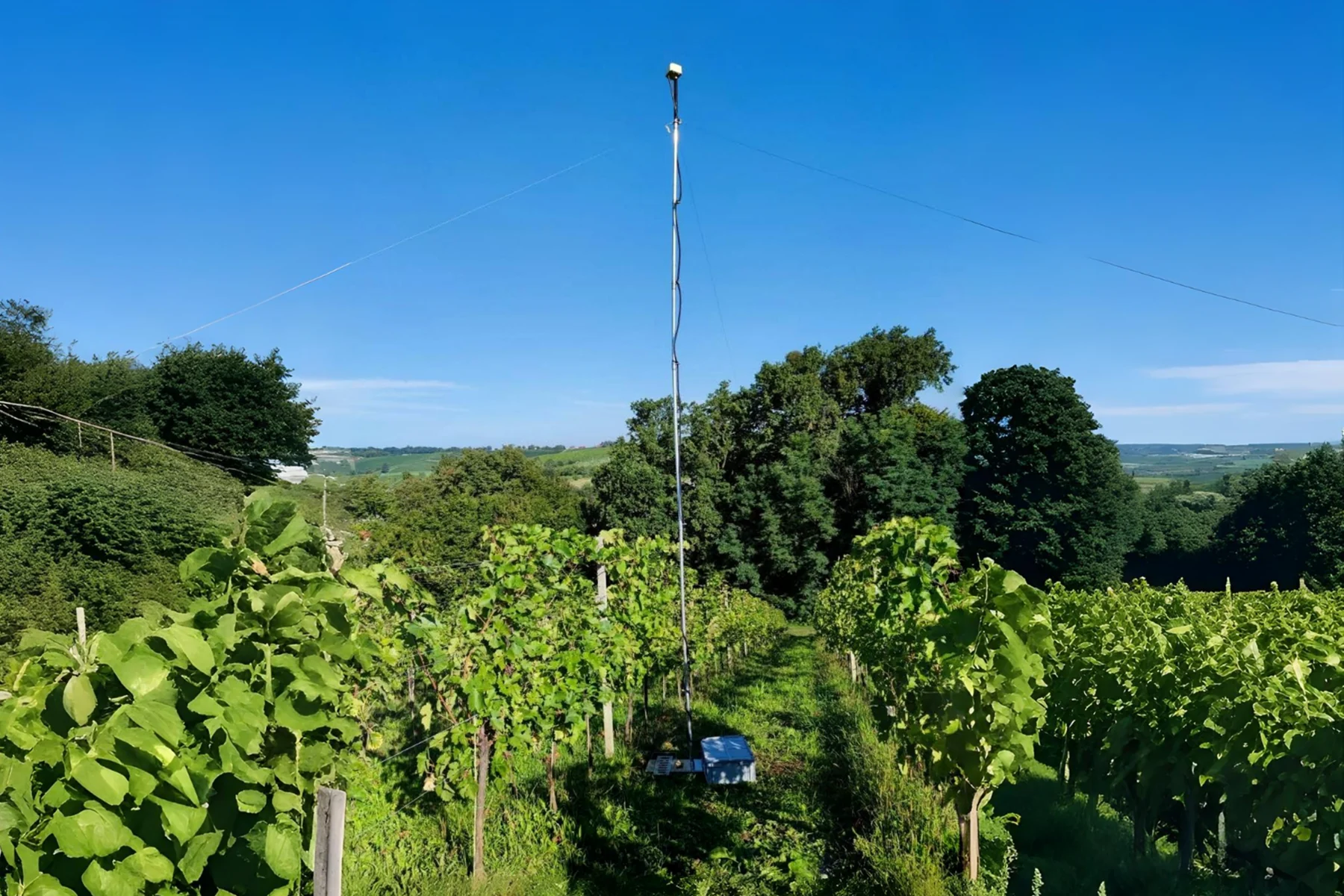

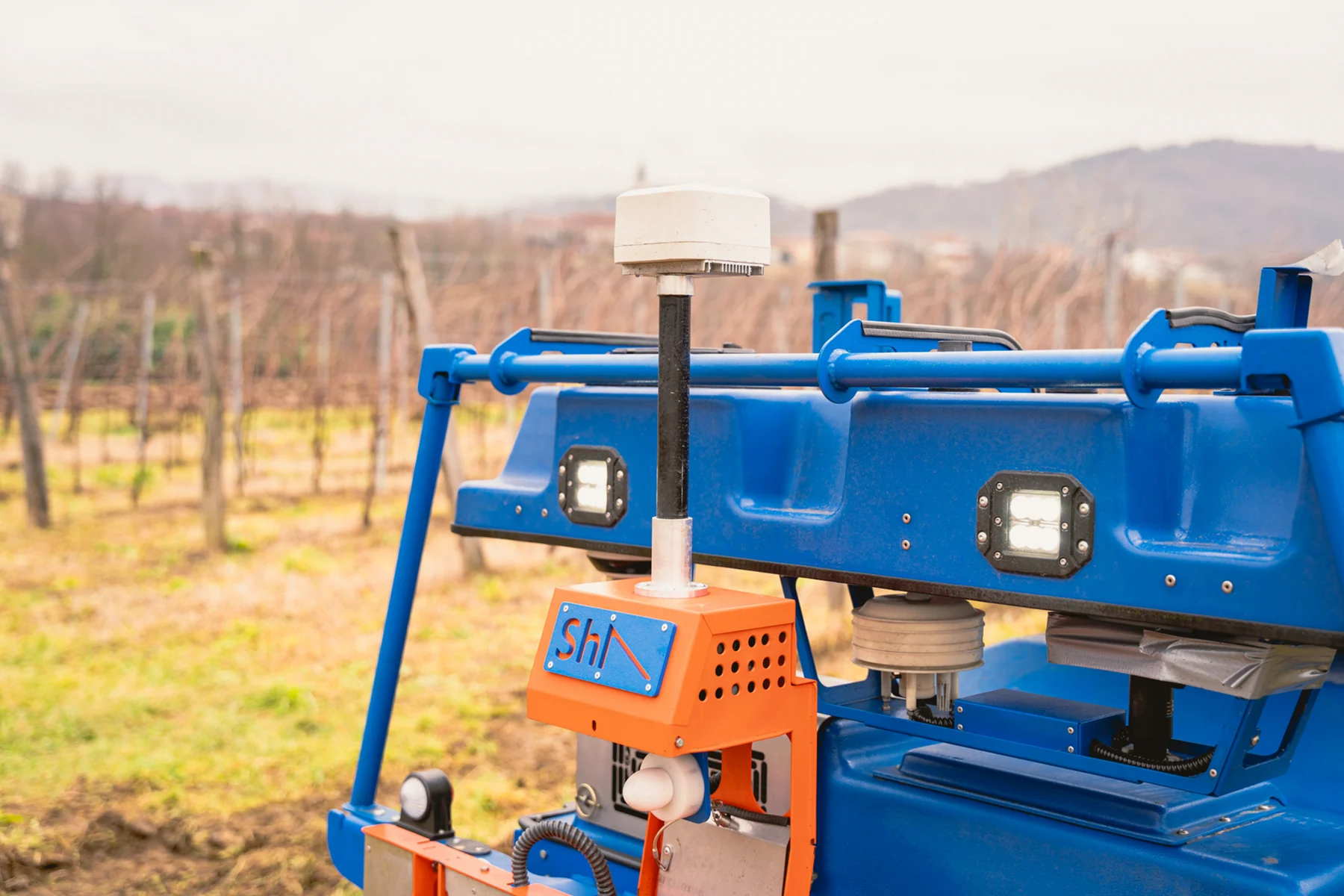

The architecture of the RTK system is built around three key components: a stationary base station, a mobile receiver known as the rover, and a dedicated data link connecting them. For more dynamic mapping scenarios, a handheld mapper can also be incorporated. The base station maintains a fixed position as an essential reference point, while the rover is attached to vehicles or other moving objects. One base station can communicate with multiple rovers simultaneously.
The base station sends corrections to Slopehelper. This additional data counteracts potential discrepancies in GNSS information caused by atmospheric and ionospheric variations, nearby structures and changing weather conditions.
To reach centimeter-level precision, the base station generates correction data and transmits it to the rover in real time through a dedicated Wi-Fi network. The rover incorporates these corrections into its GNSS calculations, ensuring exceptional positioning accuracy.
Fast installation, fast mapping and dependable positioning within a range of several kilometers.
The system eliminates the need for intricate tuning or calibration. Once the satellite connection is established, it is ready for operation.
Reliable operation in demanding weather conditions and in low-visibility environments.
The system can operate for up to one month without recharging.
All elements are engineered for high quality, long service life and dependable operation in demanding weather conditions.
The antenna, mapper and modular base-station frame are designed for easy transport and rapid field setup.
Safe and reliable power supply
Safe and reliable power supply, so you don’t have to think about power management anymore.

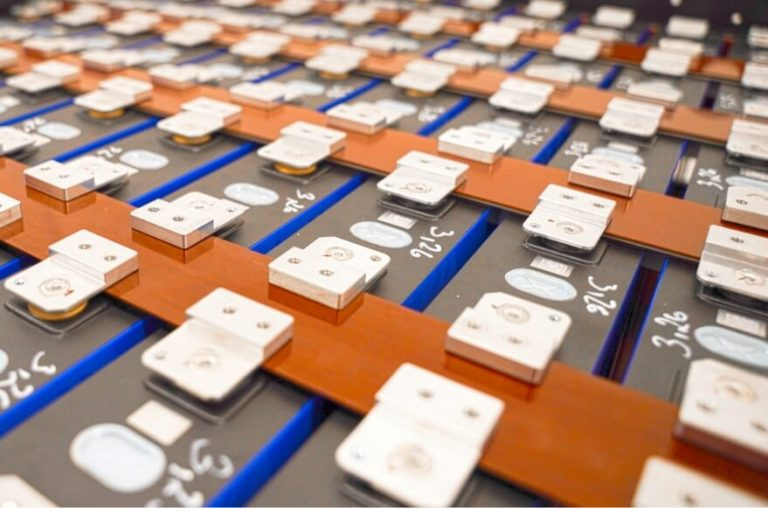

Lithium ferro-phosphate cells with a long cycle life and low toxicity.

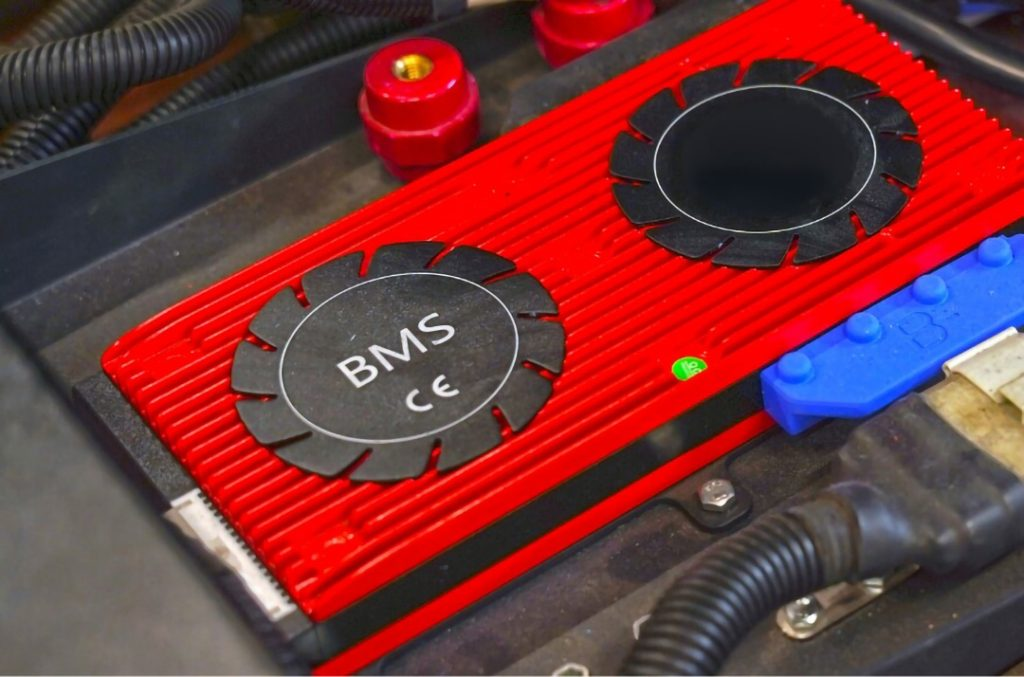

The BMS monitors the battery’s voltage, charging and discharging to ensure everything runs smoothly.
Safely connects and disconnects the battery, checks for short circuits and abnormal power usage before fully connecting.
It allows for a manual battery disconnection in case of an emergency.

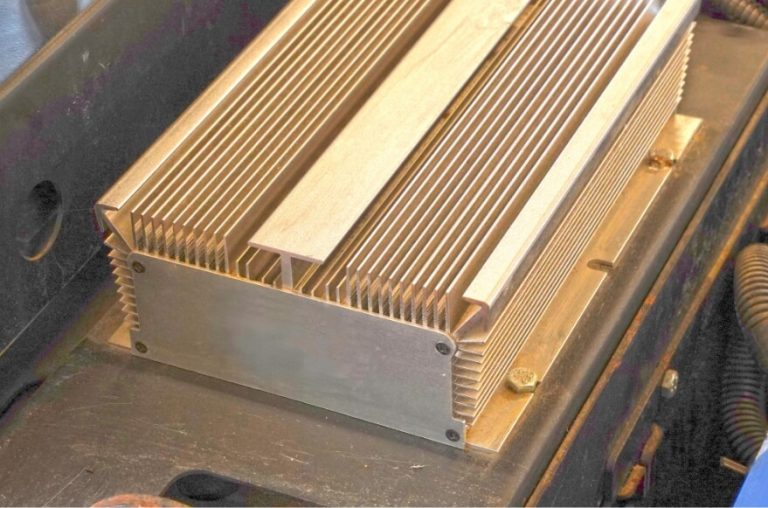

Provides 12V power lines from the 48V battery to support installed 12V equipment on the machine.

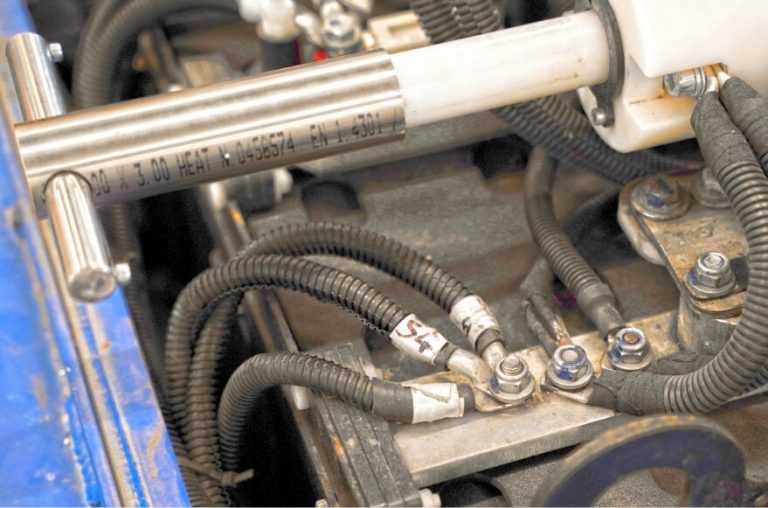

Ensure efficient and reliable electrical connectivity between the cells and distribute the electrical load evenly.

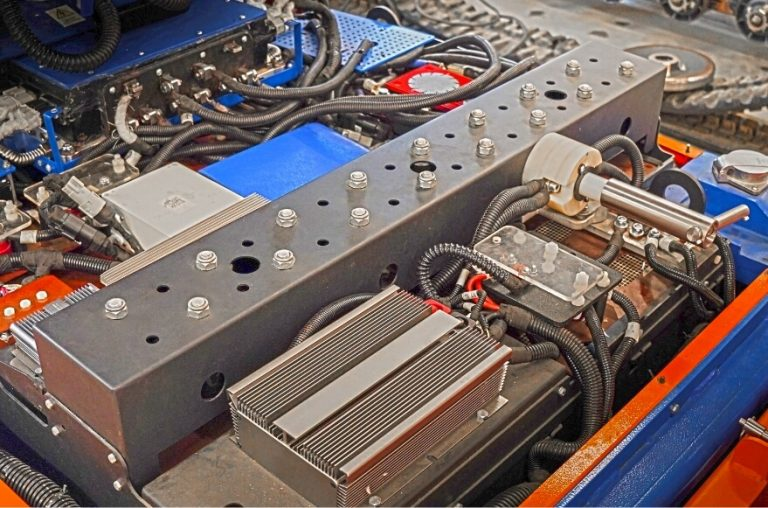

Enhance system performance by providing quick bursts of energy and improving battery longevity by reducing strain.

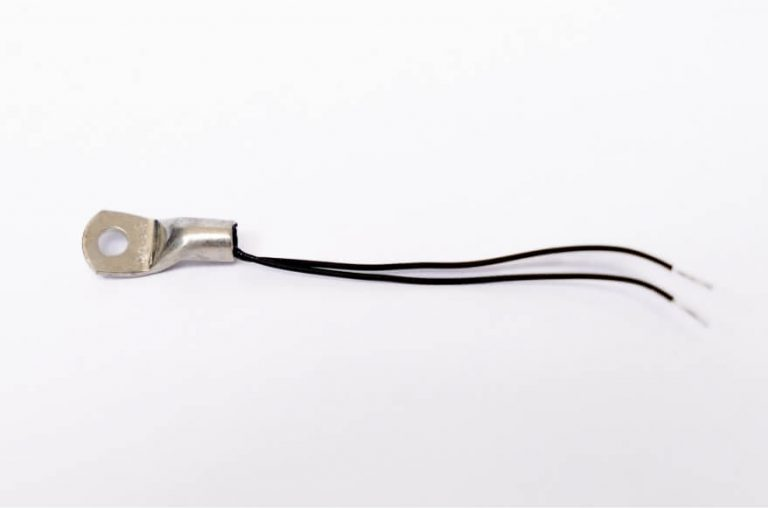

Multiple temperature sensors are placed on individual cells as well as in the power commutation module.

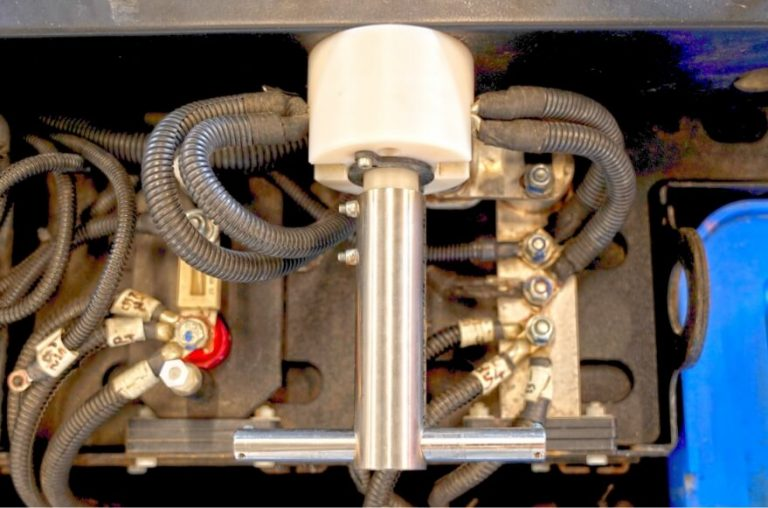

A reliable electromechanical solution for disconnecting the battery from the system in emergency situations, suitable for emergency stop buttons or safety bumpers.

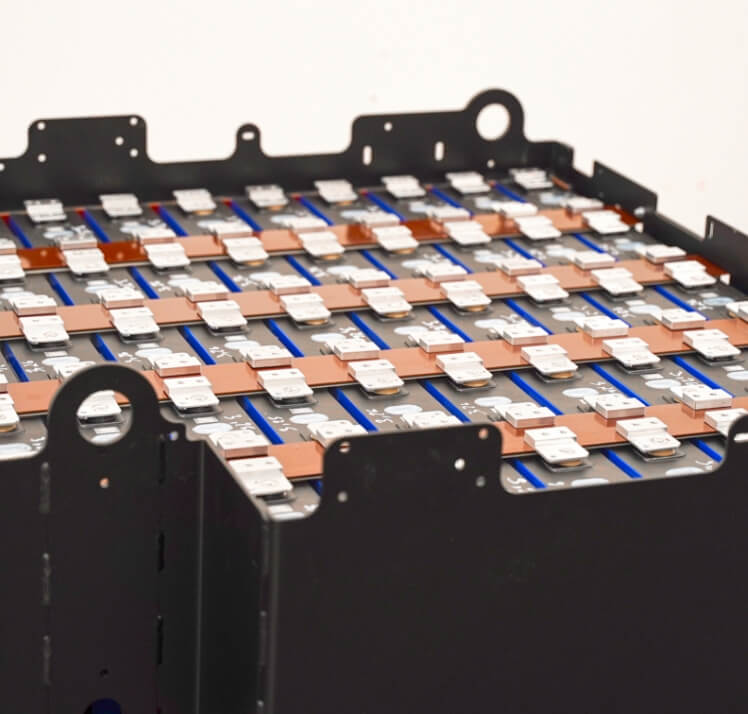

Batteries, made from LFP (Lithium ferro-phosphate), are high-capacity, safe, cost-effective, and efficiently managed through an integrated BMS, making them well-suited for the demands of electric agricultural robots, as well as other electric vehicles.

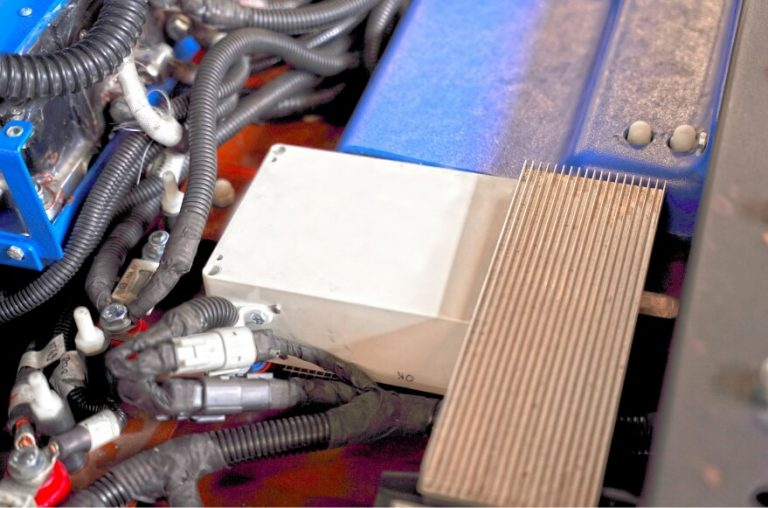

With a CAN interface the status can be controlled and monitored, fuses are installed for secure connection of loads and the system has an over-current protection with a configurable current level.
The basic configuration provides 43 kWh of energy, and the system can be easily expanded or reduced by adding or removing cells.

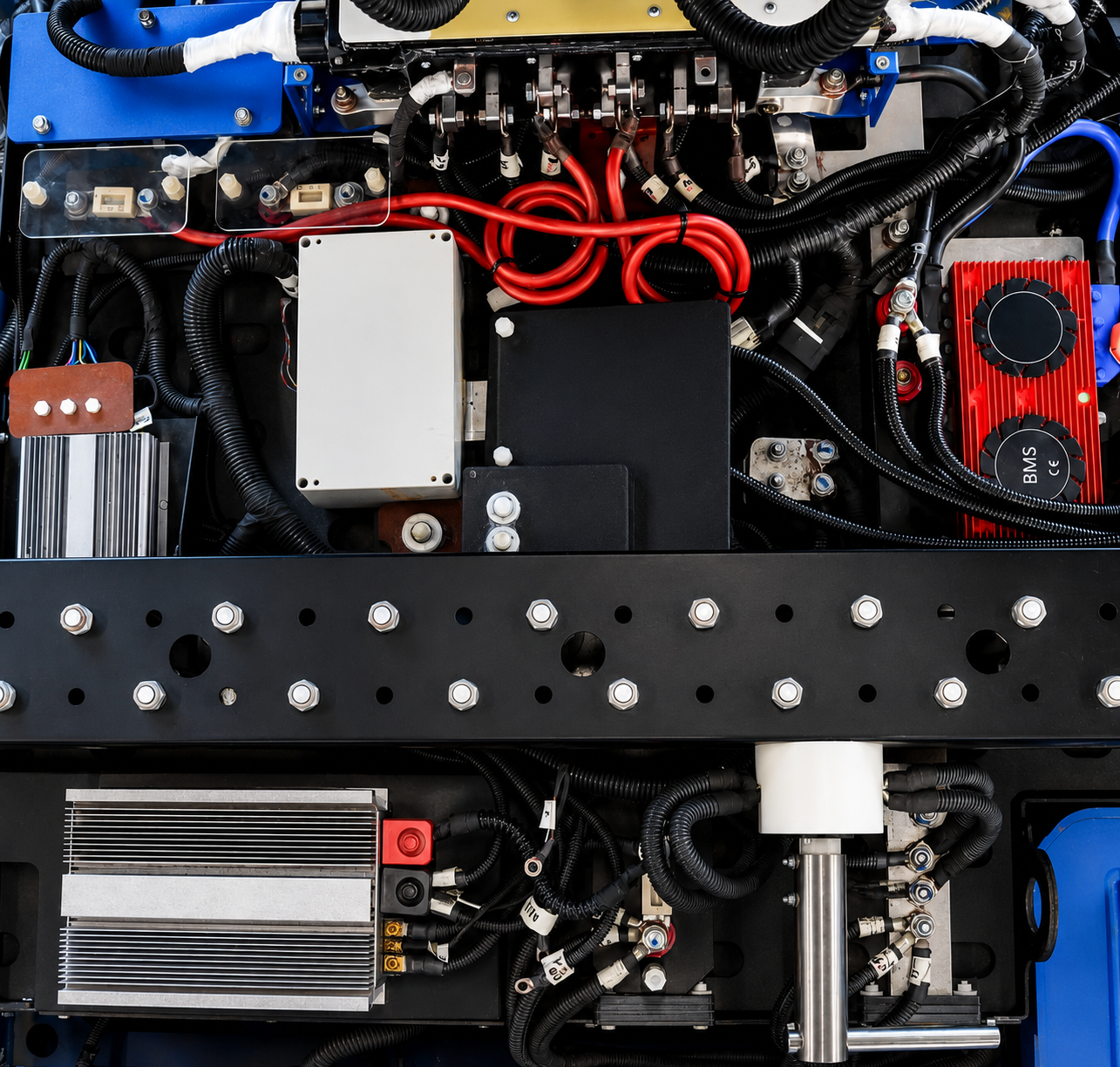

R-WAVE RPOWER is a compact and easy to install system that can be customized by adding or removing cells. Compatible with other parts of the EV48 ecosystem and designed as a plug-and-play solution, it is ideal for different applications, including full-featured electric vehicles or robots.

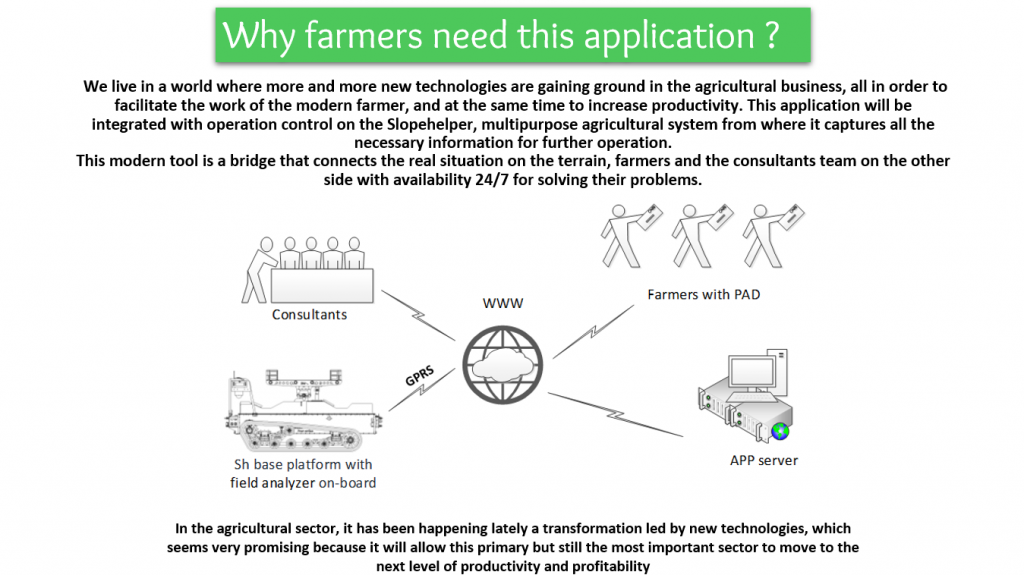

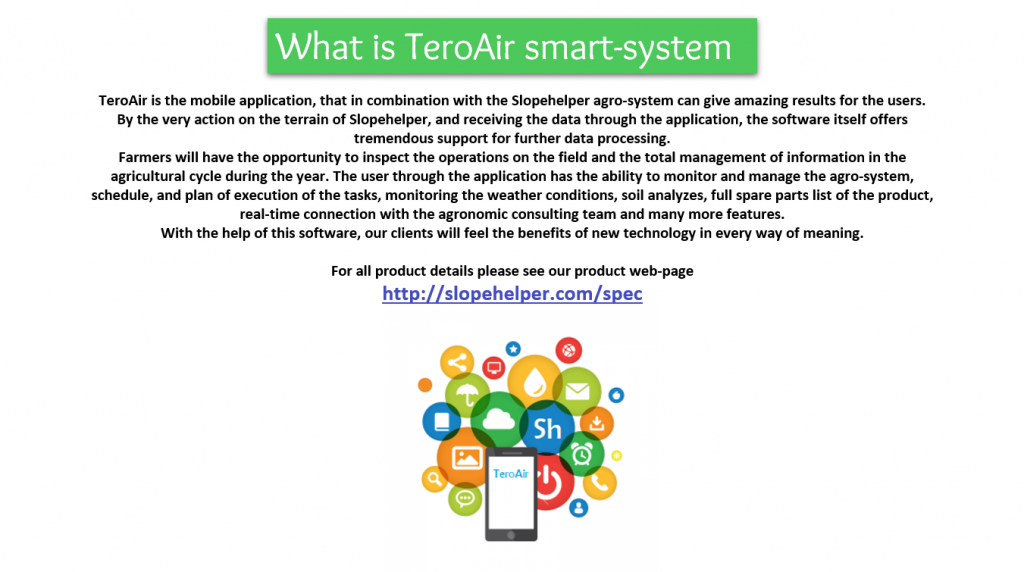

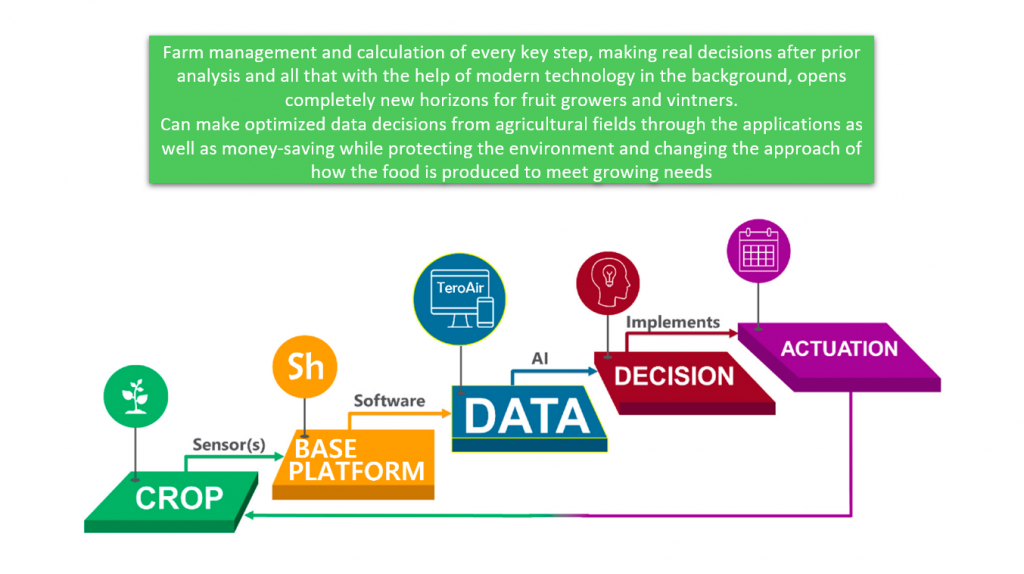

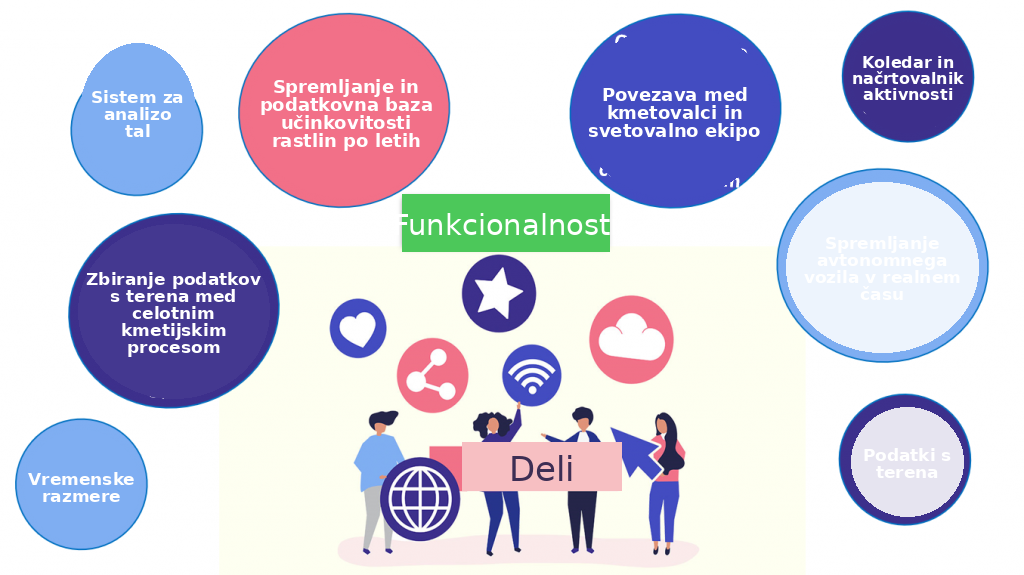

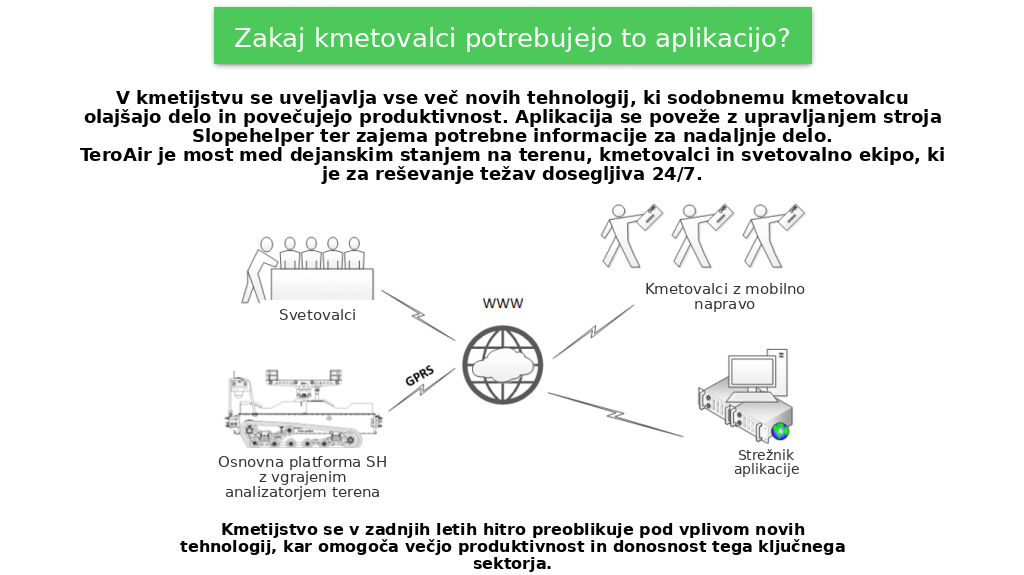

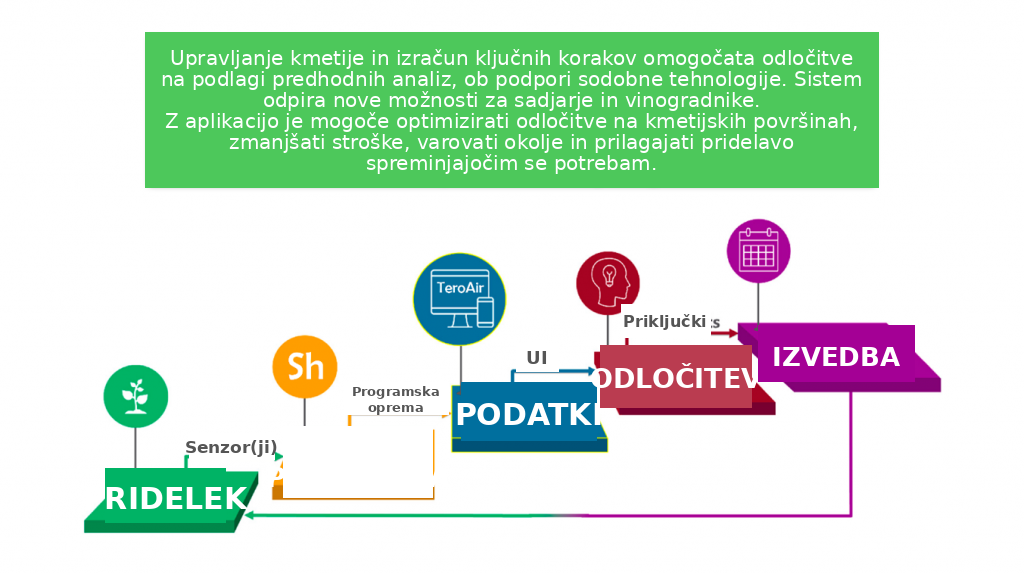

An application system that links field vehicles and customers to provide real-time data reports for mission tracking.
It combines numerous features into a single piece of software, making on-board module installation simple.
Follow Nature
Today’s data for tomorrow’s better growth. Monitor, collect and analyze atmospheric data to optimize production and adapt to changes in time.

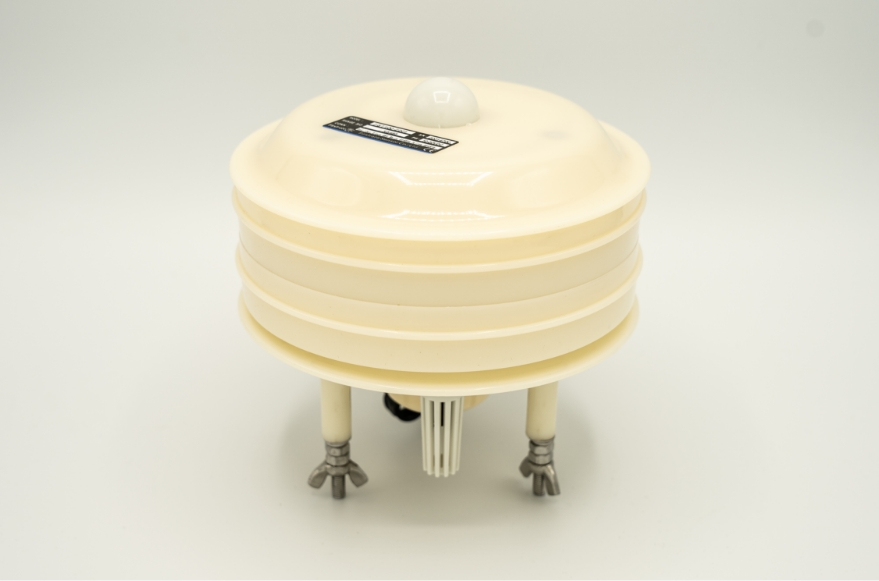

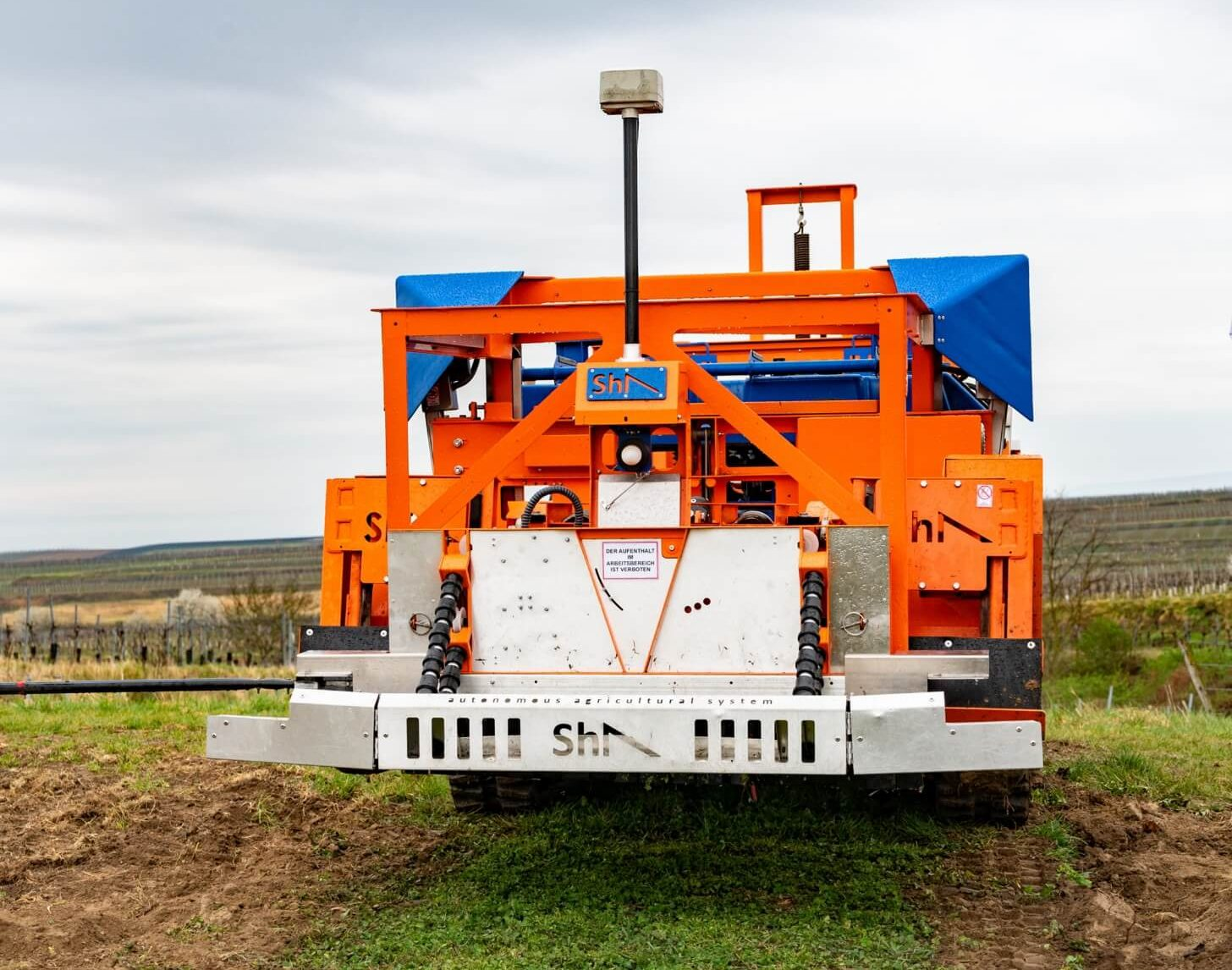

Using the R-WAVE WSTATION, Slopehelper records atmospheric conditions in the vineyard or orchard. The data is stored in the cloud and is available in real time through the TeroAir application.
By analyzing data transmitted wirelessly and stored in the cloud, you can adjust the way you work, optimize processes and increase plantation yields.
Careful monitoring of atmospheric conditions also allows you to react to changes in time and prevent diseases and other crop damage.

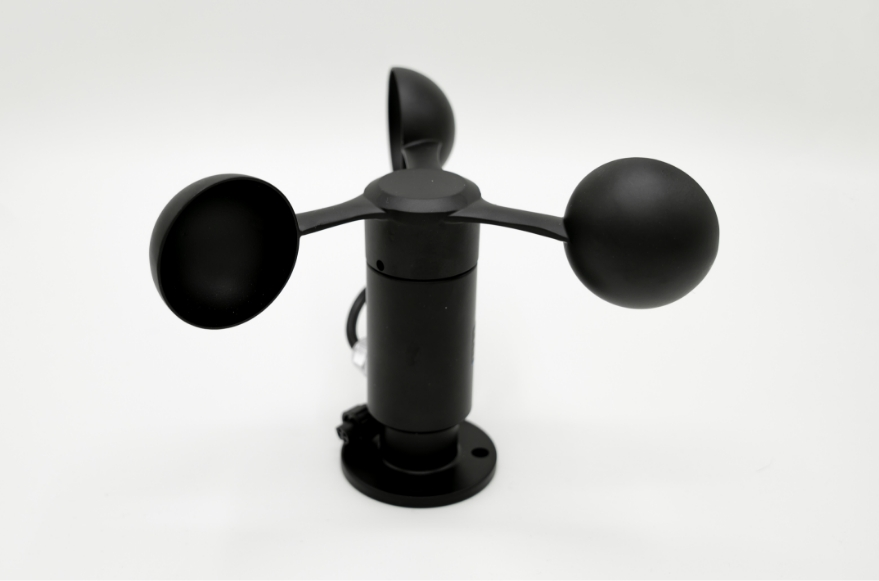

High-performance wind measurement for wind speeds of up to 50 m/s.
Designed to gather the most important atmospheric data required for agricultural decision-making.
From temperature to CO₂ level, all collected data is sent directly to your smartphone.
R-WAVE WSTATION transforms atmospheric measurements into practical information for day-to-day crop management.
Use temperature trends to take preventive frost measures and select the optimal time for harvesting.
Balance sunlight and shading on extremely sunny days to optimize plant and fruit growth.
Pressure changes help predict short-term weather shifts and prepare for storms or other adverse conditions.
Humidity monitoring supports fungal-disease control and helps optimize irrigation schedules.
Keep CO₂ within the optimal range for maximum photosynthesis and healthy plant growth.
Detect high CO levels early to protect workers and ensure safe operation of combustion-powered equipment.
Air-quality and particulate information supports protective measures and better planning of field activities.
Noise monitoring helps create a more suitable environment for wildlife, pollinators and beneficial insects.
Essential for predicting disease and pest spread, planning spraying and implementing erosion-control measures.
Weather conditions strongly affect crop quantity, crop quality and production cost. Changes can be sudden, such as storms, hail or frost, or slow and long-lasting, such as drought and climate warming. To react and adapt, the data must be monitored and analyzed over time.
Knowledge of conditions in an orchard or vineyard is therefore essential for fast responses, adapting cultivation methods and selecting the most suitable plants or varieties for a specific climate.

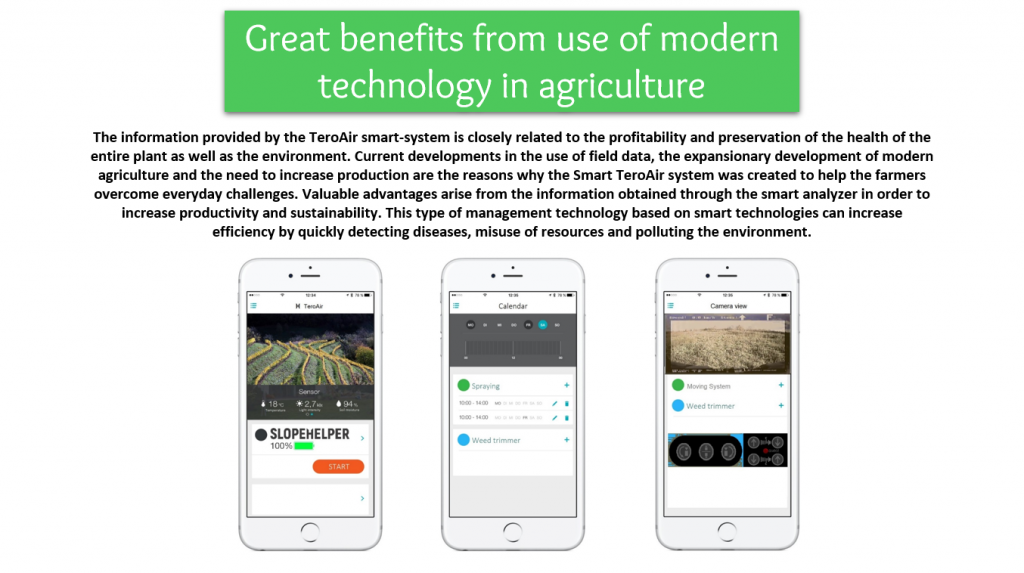

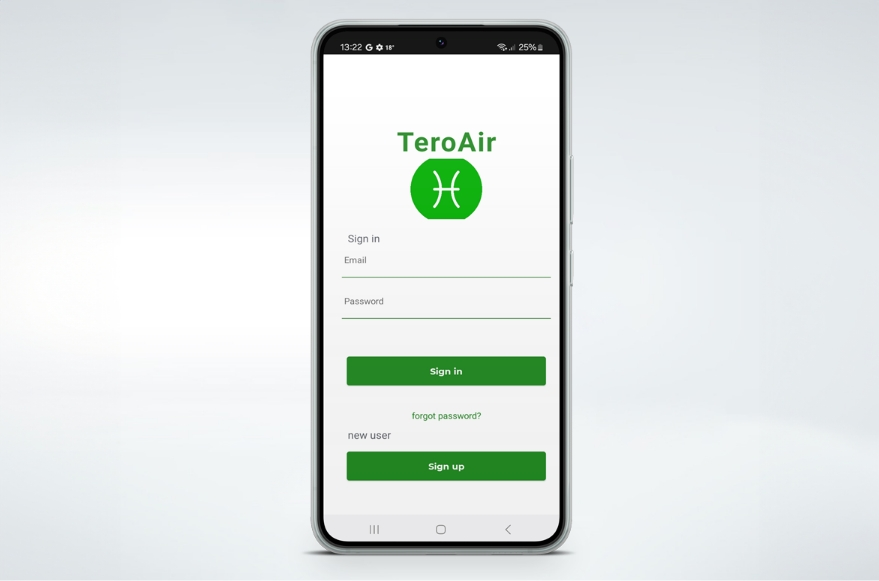

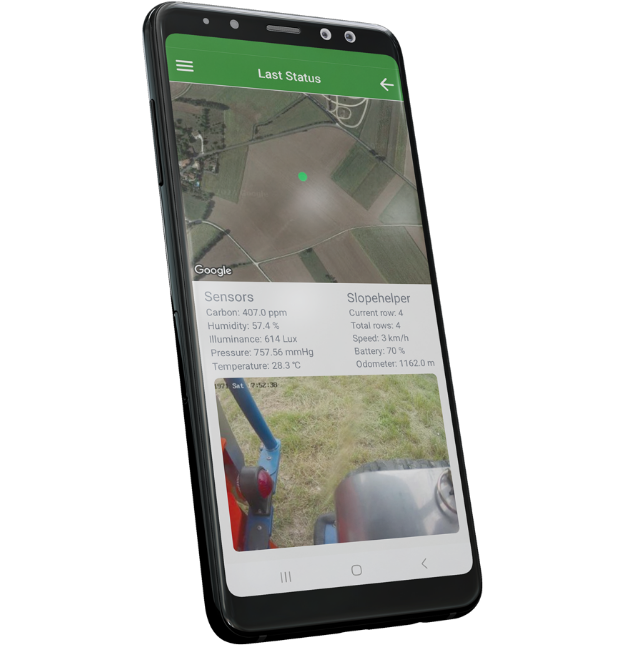

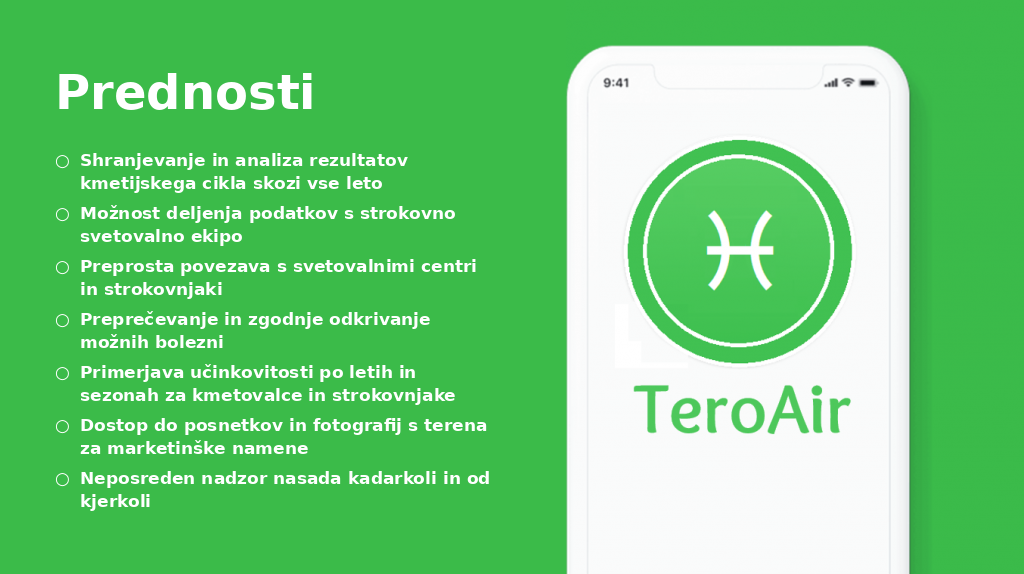

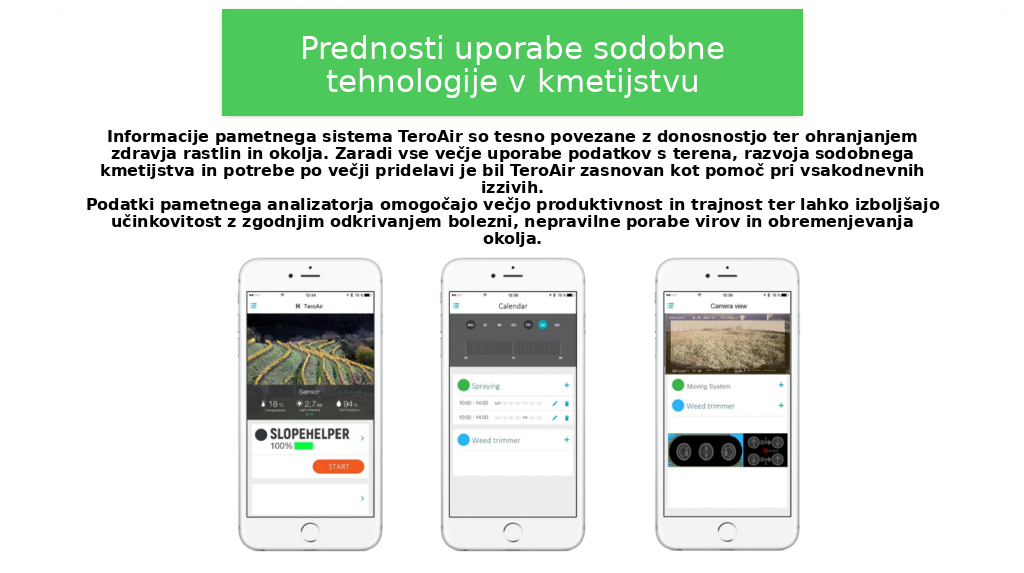

The TeroAir application displays current conditions in real time, while all collected data is stored in the cloud for future analysis.
Unlock the Future
Empower your robots and electric vehicles to move on their own, with complete support for the autonomous operation of electric vehicles.
Simplify, save and go autonomous.
R-WAVE Autonomous, as its name suggests, facilitates the autonomous operation of vehicles and robots within a defined or restricted area.
By harnessing the capabilities of R-WAVE RTK, radar and reflectors, the system creates a detailed map of the area for subsequent repetitive tasks.
Once this map is drawn up, there is no further need for the R-WAVE RTK and GNSS signals.
The vehicle can then navigate autonomously, relying solely on the map, radar and reflectors.
For operations outside permanent plantations, utilizing the GNSS and RTK system is advantageous, given its swift setup and ease of dismantling.
Distance & speed measurement and obstacle detection.

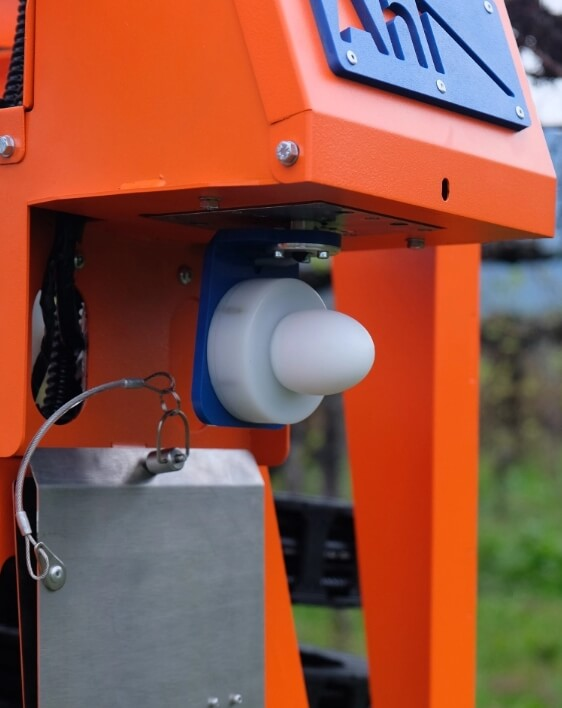

Radar for distance and speed measurement and obstacle detection.

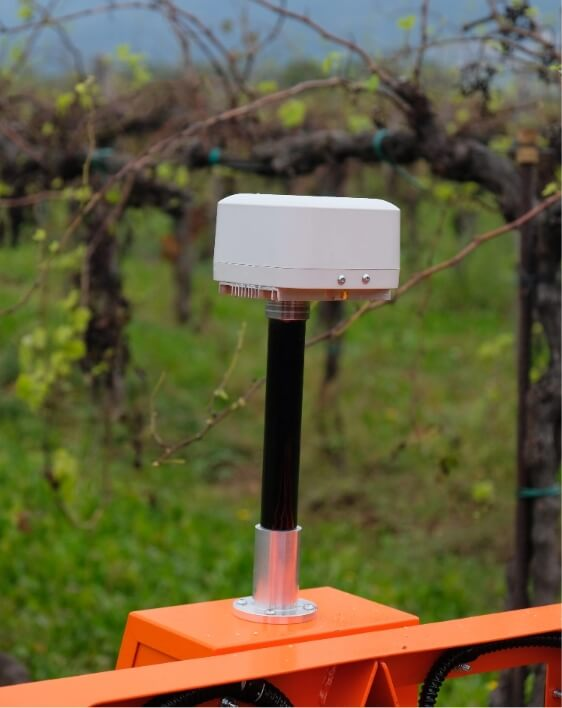

For receiving GNSS signal and correction data from base station.

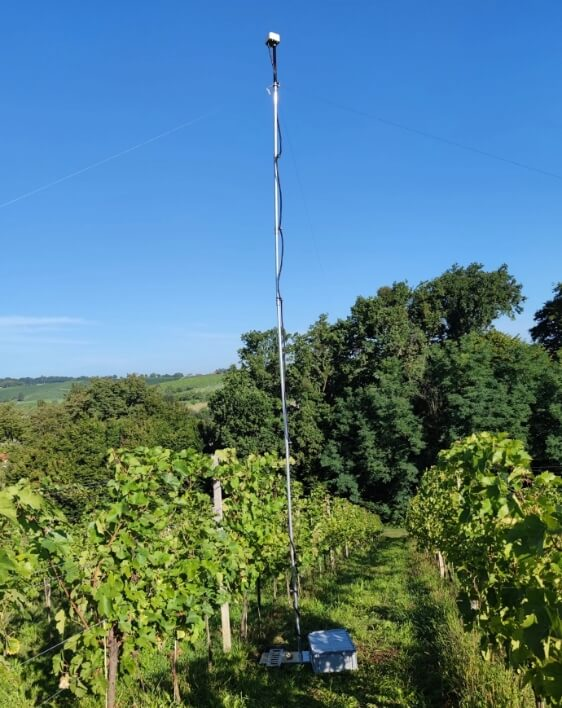

The base station sends correction data to the rover.

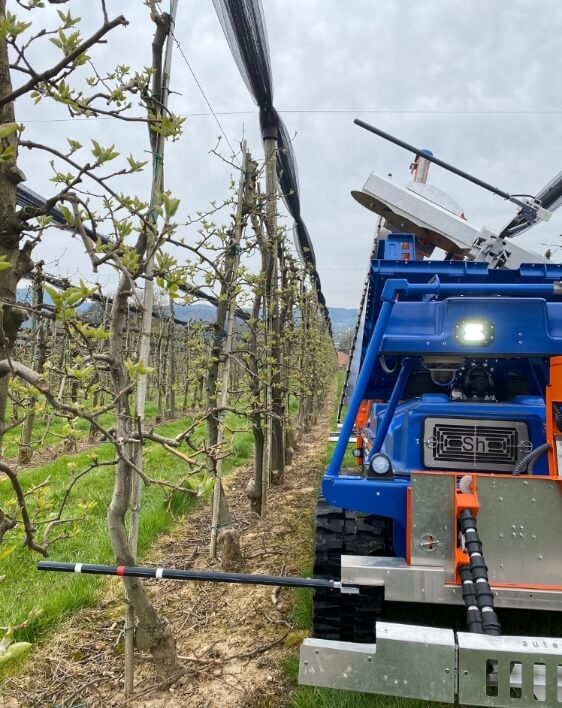

A stick sensor for detecting distance from the trees (for use in plantations).
R-WAVE Autonomous is designed to operate even without a GNSS signal and internet connection, using radar, reflectors and a pre-created map.
A simple replica of the operating area makes it easy to adapt the system to different environments and landscapes.
R-WAVE Autonomous is cost-efficient thanks to price-optimized components and reduced reliance on expensive GNSS and RTK systems during operation.
The system is designed to operate in plantations using a pre-created map, radar and reflectors, even without continuous GNSS and internet connection.
Enables continuous execution of assigned tasks, with RTK-supported setup and 24/7 autonomous operation.
R-WAVE Autonomous can work in plantations of different shapes, including straight rows, curved rows and terraces.
The Slopehelper is an autonomous agricultural robotic system designed for the cultivation of orchards and vineyards.

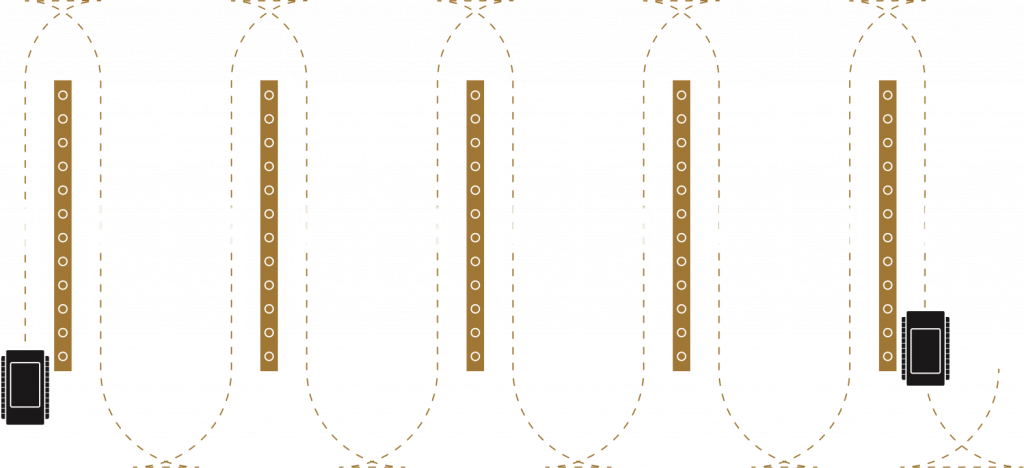

R-WAVE Autonomous system allows the Slopehelper to traverse along plantation lines and switch between rows without any human intervention.
The system uses the R-WAVE RTK and GNSS signal for navigation, or a combination of an uploaded map, radar, and encoder. The start and end of each row are clearly marked with a reflector.

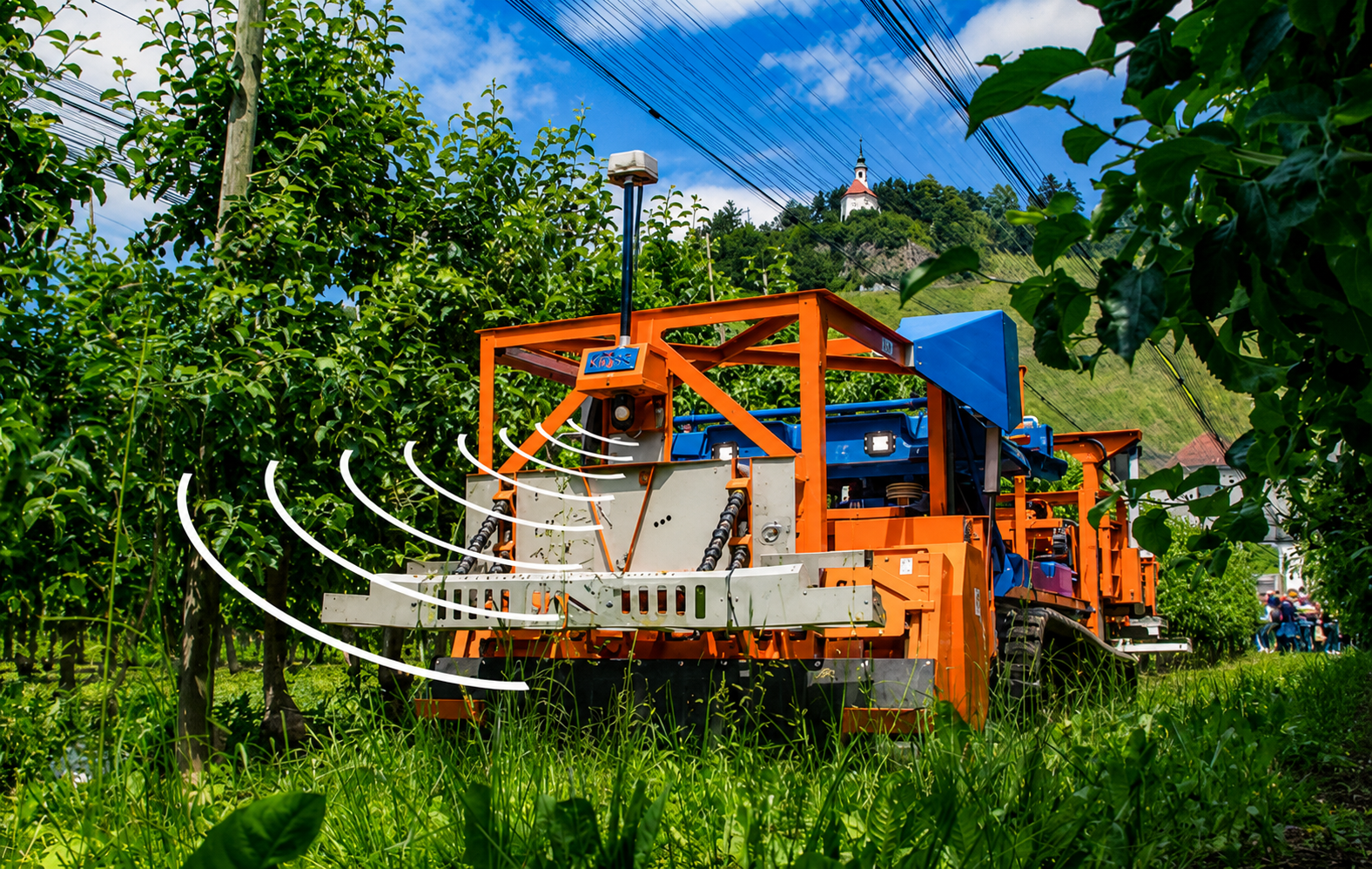

While in motion, the vehicle gauges its speed and distance and identifies any obstacles with the aid of the R-WAVE 2D MP Radar. To pinpoint trees and vines—and to ensure it maintains the correct path and distance from the rows—the Slopehelper employs the encoder.
